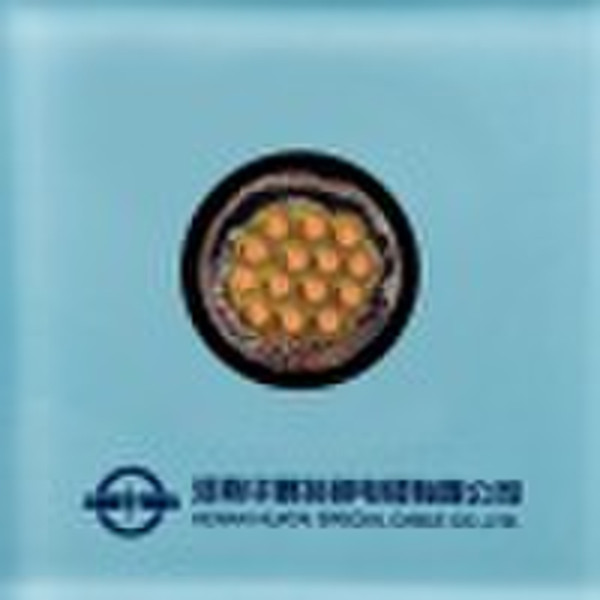

Armoured Control Cable

armoured control cable Control cable is used for the signal transmission, controlling and measuring system of the electric apparatus and the power distribute apparatus in the field of metallurgy, power and petrochemistry, The rated voltage is up to 450/750V.Type: PVC insulated, PVC out sheath control cable: From 2x0.75 to 2x40. Till 61x0.75mm2 to 61x2.5mm2PE insulated, PE out sheath control cablePE insulated, PVC out sheath control cablePE insulated, PVC out sheath, copper wire braided shield control cable 1.Standard Thecontrolcablecan be produced according to the standard GB9330-1988,and thefactory can also manufacture the cables in accordance with otherstandards. 2. Scope of Application Thecontrol cablearesuitable for the wiring of electrical controlling equipments andinstrument,monitoring and controlling return circuit,electricalprotection and measurement in power distribution unit under thecircumstance that the rated voltage is up to 450/750V AC. 3. Type& Specification Type NameApplication Site KVV Copper conductor PVC insulated & sheathed control cableFor laying indoors, in trenches and in ducts, for fixed installationKVVP Copper conductor PVC insulated & sheathed copper wire braiding screened control cableFor laying indoors, in trenches and in ducts, for fixed installationKVVP2 Copper conductor PVC insulated & sheathed control cable with steel tape shieldFor laying indoors, in trenches and in ducts, for fixed installationKVV22 Copper conductor PVC insulated & sheathed control cable with steel tape armmourFor laying indoors, in trenches, in ducts and in ground,able to withstand heavier mechanical force, and for fixed installationKVVR Copper conductor PVC insulated flexible control cableFor laying indoors,movable and flexible ZRKVVRP Copper conductor PVC insulated & sheathed cooper wire braiding screened flexible control cableFixed laying indoors with capability of moving and screeningZRKVV Copper conductor PVC insulated & sheathed flame retardant control cableFor laying indoors, in trenched, in ducts and for fixed installation, the cable should be flame retardantZRKVVP2 Copper conductor PVC insulated & sheathed flame retardant control cable with steel tape shieldFor laying indoors, in trenched, in ducts and for fixed installation, the cable should be flame retardantZRKVV2 Copper conductor PVC insulated & sheathed flame retardant control cable with steel tape armourFor laying indoors, in trenched, in ducts and underground, the cable should be flame retardant and able to bear beavier external mechanical force, and for fixed installationZRKVVR Copper conductor PVC insulated & sheathed flame retardant flexible control cableFor laying indoors, and the cable should be flame retardant flexible and movable4.Service Conditions (1)The long-time working temperature of conductor of PVC insulated cable is 70oC The long-time working temperature of conductor of XLPE insulated cable is 90oC (1)The temperature for laying the cables can not be lower than 0oC.Permissible bending radius(r):unarmoured cable:r≥6D;(D: outer diameterof the cable);armoured or copper-tape screened cable:r≥12D;shieldedflexible cable:r≥6D
