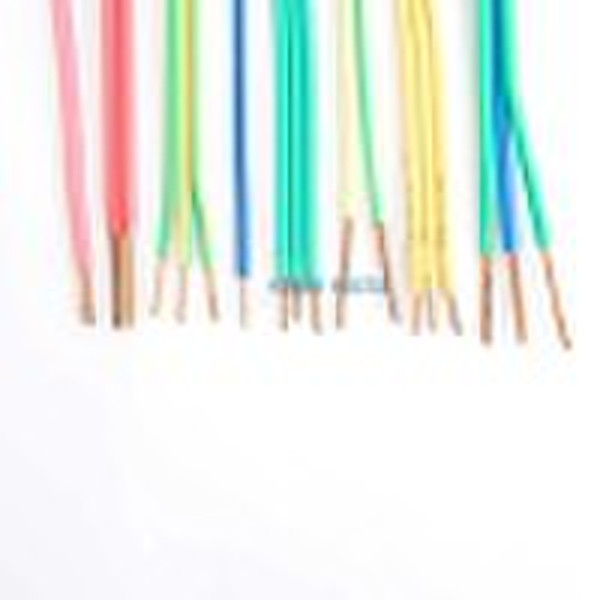

300/500V PVC Insulated Electrical Wire

Detailed Product Description Wire / PVC Insulated Electrical Wire/ 450/750V WirePVC Wire is used for lighting, electronic equipment, instument and communication equipment with rated voltage 450/750V or lessSpecification:1. The rated voltage of the wires should equal to or higher than the rated voltage of the system when wires are used at AC system. If the wires are used at DC system, the rated voltage of system should lower than 1.5 times as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.2. The long term working temperature should lower than 70oC. The working temperature of BV-90 should lowerthan 90oC. And the laying temperature should higher than 0oC. 3. The curve diameter of the wire should longer than 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.TypeNameLaying place and requirementLong term working Temperature 0C60227IEC01 05BVBLVCopper conductor PVC insulated wiresAluminum conductor PVC insulated wiresFixed laid indoors,conduit etc. 7060227IEC07(BV-90)Heat resistant copper conductor PVC insulated wire at 90 0CMainly be laid at the places of high temperature environment and can be laid indoors ,conduits. 90BVRCopper conductor PVC insulated flexible cableBe for laying permanent place where flexible required. 7060227IEC10(BVV) BVVCopper conductor PVC insulated PVC sheathed round wiresFixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. 70BLVVAluminum conductor PVC insulated PVC sheathed round wiresBVVBCopper conductor PVC insulated PVC sheathed flat wiresBLVVBAluminum conductor PVC insulated PVC sheathed flat wires60227IEC02(RV)60227IEC06(RV)Copper conductor PVC insulated flexible connector wireMainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required 7060227IEC42(RVB)Copper conductor PVC insulated flat flexible connector wireRVSCopper conductor PVC insulated flexible twisting connector wire60227IEC52(RVV)60227IEC53Copper conductor PVC insulated PVC sheathed round flexible connector wire60227IEC08(RV-90)Cu conductor heat resistant PVC insulated flexible connector wire at 90 0CMainly used at the places where heat resistance is required90
